Aquameter Gemini Binnacle and Flush Mount Compass Parts

The Gemini compass (4-1/2" clear dome)was manufactured by Aquameter for many years until the Aquameter Compass Company was taken over by Rule Industries. The Gemini was marketed by Rule Industries for a short period of time, until it was modified and became part of the Constellation line of compasses. Most of the important parts are still available. The Gemini compass uses about 24 ounces of compass fluid to fill it. Click on the parts diagram to enlarge the image. Parts with prices are listed below by the key number in the diagram.


gemregpart

1-Light CapNo Longer Available

160-28-1
2-Red FilterNo Longer Available

90-18

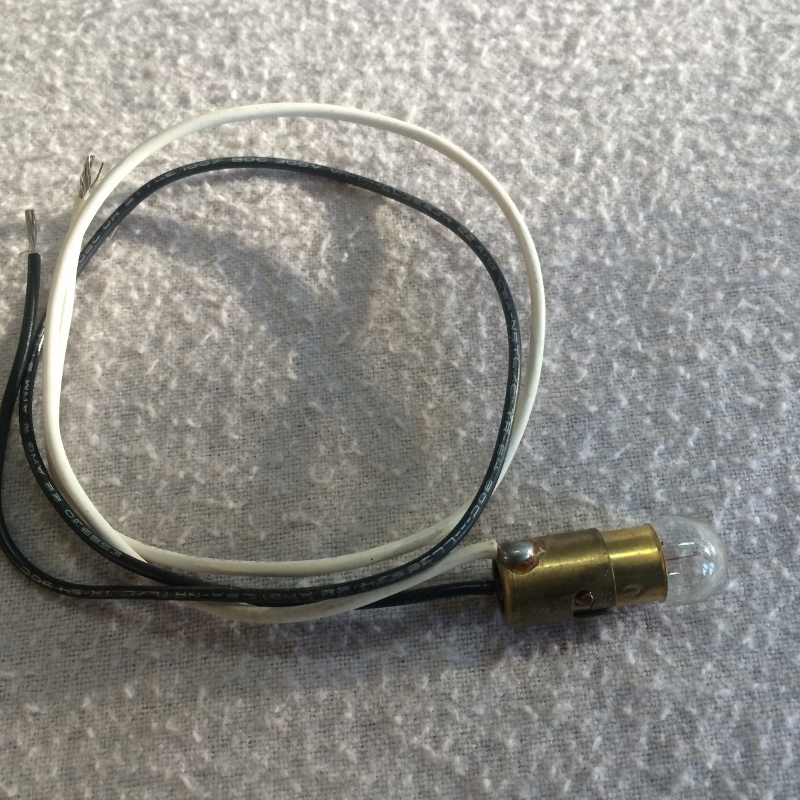

Click to enlarge5-Wire and Socket with 12volt bulb
147-51$18.00
Click to enlarge5-LED LIght (Red)Tube with wireReplaces bulb socket and wire

A14430$24.00
Click to enlarge6- Bulb 12V
80-11$6.50
Click to enlarge7-Wire and Socket w/o Bulb
147-4$12.00
Click to enlarge11-Top Bezel Ring (Plastic)
163-54$31.00
14-Aluminum Clamping Ring 160-35-1$22.00
15-Screw (4-40 x 5/8")Uses 4 of these and 4 of # 16-171-11

160-8$0.36
16-Screw (4-40x3/4") Uses 4 of these and 4 #15-160-8

171-11$0.36
17- Nut (4-40) 160-13$0.48
Click to enlarge19-Clear 4-1/2" Dome
160-5$44.00
20-Navigrid DiscNo Longer Available

167-1A-2
21-Dial 178-51-2$40.00
22-Lubbers lines Pan and Gimbal Ring Assy.No Longer Available

160-51-4
23-Lock Washer 160-7$0.36
24-Nut, Pivot Post 160-4$0.48
25- Weight- Pan Counter Balance 175-17-1$4.98
Click to enlarge26- Oring, Dome
160-20$14.00
Click to enlarge27-Bowl
160-25-2$41.00
28 Filler Plug Screw 160-14$2.80
Click to enlarge Filler Plug Gasket
SH-0039$0.95
29-Clamping Ring 171-8-1$22.00
Click to enlarge30-Expansion DiaphramThis diaphram measures 3-3/16" in diameter

160-1-1$34.00
31- Compensator Housing, Expansion RetainerNo Longer Available

160-50-5
32- Screw, Expansion Retaining 160-3$0.65
33-Binnacle HousingNo Longer Available

176-1-4
34- Grommet, Light Wire 147-15
35-Hole PlugNo Longer Available

165-7
36- Pedestal Adapter PlateNo Longer Available

176-2-2
Screw, compass retaining screw (to Binnacle)Self Tapping screw, attaches compass to binnacle

37-A14942$0.85
COMPASS FLUIDCOMPASS FLUIDCompass oil

Click to enlarge11-Top Bezel Ring (Plastic)
163-54$31.00
Rebuilt 4-1/2" GeminiRebuilt 4-1/2" GeminiThe standard Gemini compass originally manufactured by Aquameter Compass Company, then manufactured by Danforth compasses as one of the Constellation series compasses. It is a 4-1/2" card flush mount compass that also will fit into most existing Gemini binnacle mount cylinders.

These compasses are completely rebuilt with new clear domes, gaskets, diaphragms, pivots, jewels, fluid and compass bowls. They come with 12 volt red LED lighting and a two year warranty.

Limited quantities

A-180Regular price: $356.00Sale price: $299.00
